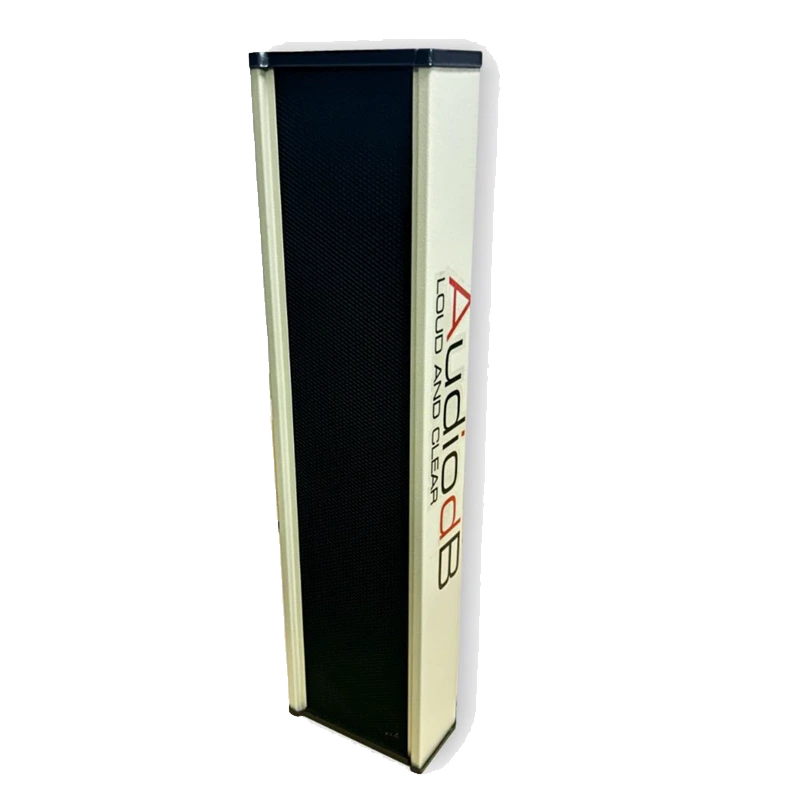

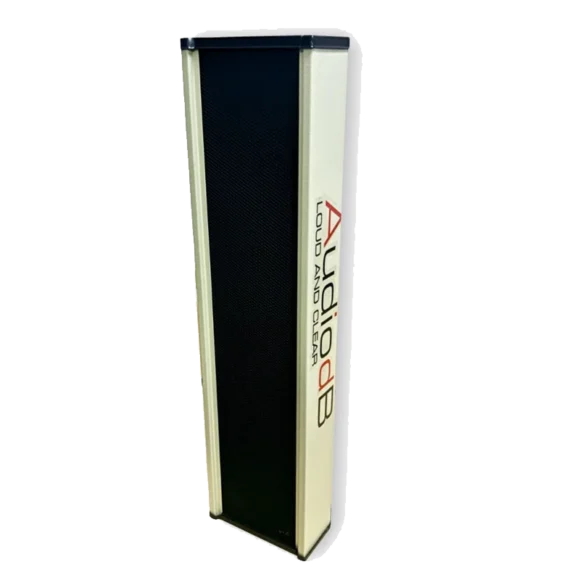

AD-TCS20A/ is a Column speaker which can be Used to easily adjustable mounting brackets in any Surface to accurately
direct the sound beam. It has Three power tapping (15/10/5W) with built in 100V transformer.
| SYSTEM PERFORMANCE | |
|---|---|
| Frequency Response | 150Hz – 10000 Hz |
| Nominal Dispersion | 120° |
| Rated Impedance | 500 Ω / 1kΩ |
| Long-Term Power Handling | 15 W (30W peak) |
| Sensitivity (SPL / 1 W @1m) | 110 dB SPL |
| Maximum SPL @1m | 116 dB SPL |
| Rated Input Voltage | 100 V |
| Transformer Taps (100V) | 15 W / 10 W / 5 W |
| PHYSIC | |
| Enclosure | Metal |
| Environmental | Outdoor uses, IP 66 |
| Operating Temperature | -25° C to 55 °C |
| Storage Temperature | -40° C to 70 °C |
| Relative Humidity | <95% |
| Connectors | Binding post terminal |
| Suspension/Mounting | L Shape mounting clamp is fixed in speaker and can be mounted easily on any wall with 3 holes in clamp. |
| Dimensions | Length: 670mm Width: 165mm Height: 148 mm |
| Colour | White |
| Net Weight | 5.300kg |
| Shipping Weight | 5.300kg |
